The fan that adapts to the kitchen. The main task of a fan will always be to remove steam, odors and grease, but by choosing the combination of induction hob and countertop fan, you take your kitchen back. With a discreet and quiet, but efficient, solution, everything is in place to create the dream kitchen. The kitchen where you can both live and cook – without practical limitations to the design of the room.
The tower rises 11 cm from the top of the plate and provides very efficient extraction through high air speed. When you are not cooking, the fan disappears completely in the hob. The switch for concentrating the flue to one side provides significantly better catchment where you need it most.
You choose whether you want the air to be led straight out of the house, or whether you want to buy a recycling kit so that odors are absorbed via monoblock filters.

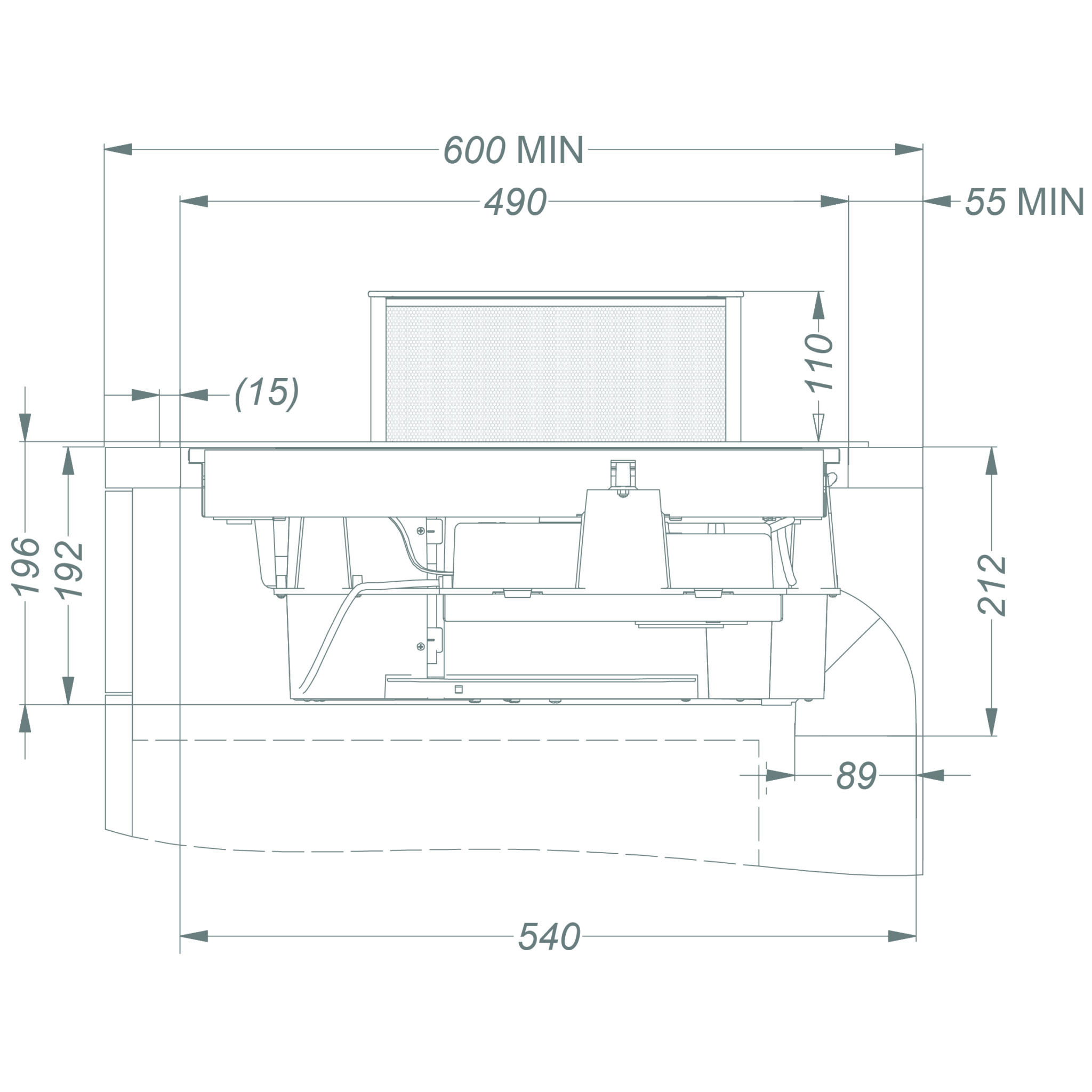

It has a low installation height, only 19.2 cm (without glass) and provides maximum space in the cabinets below.
Additional information
Width | 78 cm |
---|---|
Metal / Cooler | Sort glass |
Ventilation forms | Duct out, Recirculation |
Energy class | B |
Ectraction m3/t | 224-563 |
Noise level dBA | 51-70 |
Outlet dimensions mm | 222×88 |
Ventilation tower, hight | 11,00 cm |
Cooking zones | 2 x 1850 W + 2 x 3000 W |
Cooking zones, size | 24,00 x 20,00 cm |
Touch panel | Yes, red sliders |
Number of power steps, hob | 9 + Power |
Bridge function | Yes, manual |
Stop & Go | No |
Safety look hob | Yes |
Timerfunction | Yes |
Keep-warm function | No |
Grill function | No |
Video
Documents
Her kan du laste ned dokumenter i PDF-format.
User instructions: Click here
Installation manual: Click here
If you cannot read PDF-documents: Download Adobe Acrobat Reader for free here »
